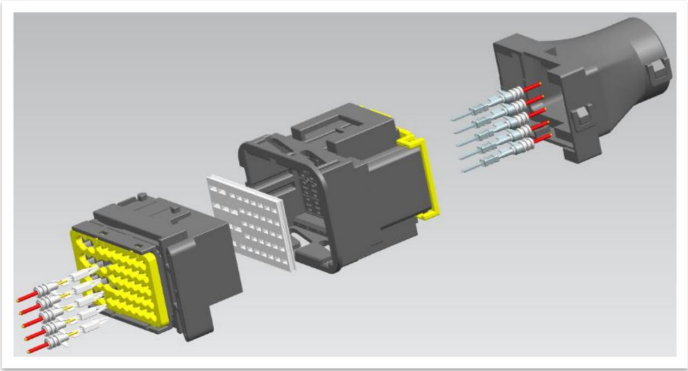

Low voltage connector case

Quantity
  • Chat with us

  • Secure payments

  • 14-day returns

Product Features and Functions

Product Type Features

• 42Pin, Female&Male Connector, Wire to wire, Wire outlet angle is 180°, Working temperature is -40–120℃, UL 94HB Flame

Main Features

Slide Lever type double-Lock Plate

Repairable hybrid

Wire Size Range: MT Ⅱ : AWG 22-17(0.25~1.0mm² )/JPT : AWG 20-13(0.5~2.5mm ² )

Contact Resistance: Max 5mΩ(MT Ⅱ) /Max 3mΩ(JPT)

Insulation Resistance: Min 100MΩ

Dielectric Strength: AC 1kV/Min

Pairing force: 75.0N max

Locking strength: 110.0N min

Vibration Class: V3 (base on USCAR-2)

Waterproof Class: IP67 / IPX9K



EU RoHS (2011/65/EU) Directive Compliant
EU ELV Directive 2000/53/EC Compliant
China Measures for the Administration of the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products (China RoHS 2, Order No. 32 of 2016 of the Ministry of Industry and Information Technology and seven other ministries)
Halogen ContentDisclaimer
